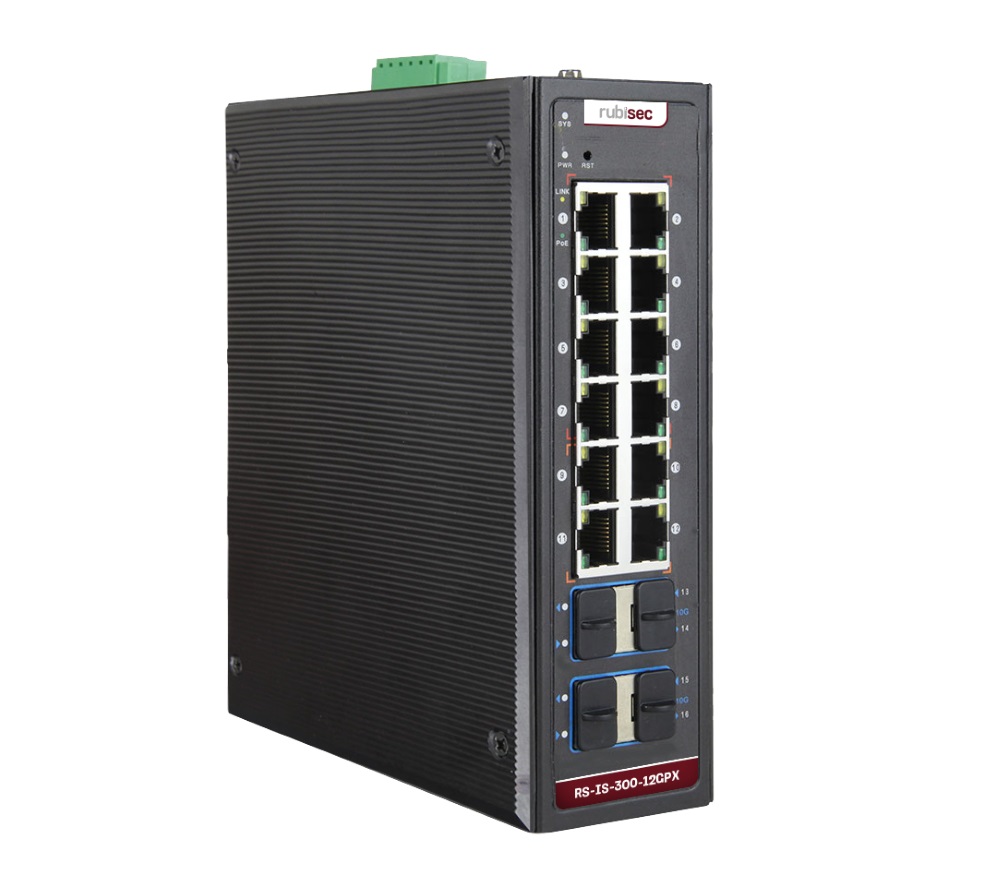

Ürün Kodu: RS-IS-300-12GPX
| Anahtarlama Cihazı (Switch) | |
| Bağlantı Noktası Sayısı: | 16 |
| Sabit Bağlantı Noktaları Açıklaması: | 4 adet 1G/10G SFP+ fiber port yuvası , 4 adet 10/100/1000Base-T bakır port 8 adet 10/100/1000Base-T PoE destekli bakır port |
| Anahtar Bant Genişliği: | 104 Gbps |
| Yığınlama: | Yığınlama desteği yoktur |
| Yönetim Yazılımı: | WEB GUI, CLI Konsol, SNMP, SSH, SSL |
| Paket İletim Hızı (Mpps): | 77.38 Mpps |
| Güvenlik 1: | Broadcast storm control, Backup for host datum, SSH 2.0, SSL, Port isolation, ARP message speed limit, AAA & RADIUS, MAC learning limit, Mac black holes, User hierarchical management and password protection, IP-MAC-VLAN-Port binding, ARP inspection, Anti-DoS attack, IP source protection, IEEE802.1X & MAC address authentication |
| Güvenlik 2: | Rubisec NMS platform cluster management (LLDP+SNMP), CPU real-time utilization status view, SNMP V1/V2/V3, Console/ AUX Modem/ Telnet/ SSH2.0, CLI configuration, Cable length status detection, NTP clock, One-key recovery, LLDP, FTP, TFTP, Xmodem, SFTP file upload and download management, Ping detection, System work log, Web network management (HTTPS) |
| Fiziksel Özellikler: | Calısma sıcaklıgı -40°C / +80°C aralıgına sahip IP40 DIN rail Montaj, 32K MAC Adresi, 240watt PoE bütçesi, 166*150*75mm, <2,4kg |
| Diğer Özellikler 1: | IEEE802.3X (Full-duplex), Port temperature protection setting, No connection port automatic sleep, Port green Ethernet Energy-saving setting, Broadcast storm control based on port speed, SFP+ optical port DDMI real-time digital diagnosis, The speed limit of the message flow in the access port, minimum particle size is 64Kbps. |
| Diğer Özellikler 2: | IPV4 Equal Cost Routing, NG protocol, maximum 1000 entries, ARP protocol, maximum 1000 entries, Pingv6, Telnetv6, TFTPv6, DNSv6, ICMPv6, IPV4/IPV6 VRRP, the maximum group is 255, IPV4/IPV6 VLANIF interface supports up to 128, IPV4/IPV6 static route/default route supports up to 128 entries, |
| Diğer Özellikler 3: | IPV4 dynamic routing, RIPv1/v2, OSPFv2, BGP4+, 4000 routing entries, IPV6 dynamic routing OSPFv3, BGP+, RIPng, IPV6 management, 1000 routing entries, L3 network management function, IPV4/IPV6 dual-stack management, L3 routing and forwarding, support communication between different network segments and different VLAN |
| Diğer Özellikler 4: | Voice VLAN, QinQ configuration, IEEE802.1q, VLAN based on MAC, VLAN based on the protocol, 4K VLAN based on port, Port configuration of Access, Trunk, Hybrid. 802.3ad LACP dynamic aggregation, |
| Diğer Özellikler 5: | Static aggregation; Max. 8 aggregation groups and 8 ports per group. STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s), Support ERPS ring network, ring network self-healing time is less than 20ms, ITU-T G.8032; Max. 250 Rings; Max. 250 devices per ring. |
| Diğer Özellikler 6: | MLD Snooping v1/v2, Multicast VLAN, IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out, Bidirectional traffic mirroring for basic ports, Diff-Serv QoS, Priority Mark/Remark, Queue Scheduling Algorithm (SP, WRR, SP+WRR), Flow-based Rate Limiting, Flow-based Packet Filtering, |
| Diğer Özellikler 7: | 8*Output queues of each port, 802.1p/DSCP priority mapping, Port-based Issuing ACL, ACL based on port and VLAN, L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. DHCP Client, DHCP Snooping, DHCP Server, DHCP relay |
| Diğer Özellikler 8: | 4KV 8/20us , IEC61000-6-2 (Common Industrial Standard) , IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge , IEC61000-4-3 (RS):10V/m (80~1000MHz) IEC61000-4-4(EFT): Power cable: ±4kV; data cable: ±2kV , IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV , IEC61000-4-6 (Radio frequency transmission): |
| Diğer Özellikler 9: | 10V(150kHz~80MHz) , IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s to 3s , IEC61000-4-9 (Pulsed magnet field): 1000A/m , IEC61000-4-10 (Damped oscillation): 30A/m 1MHz , IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV , IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock), IEC60068-2-32 (free fall) |
| Diğer Özellikler 10: | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
| Diğer Özellikler 11: | Bu ürüne ilave olarak 80 $ değerinde 240W AC-DC güç adaptörü verilecektir. |
| Diğer Özellikler 12: | 240Watt POE butcesine sahiptir. |
