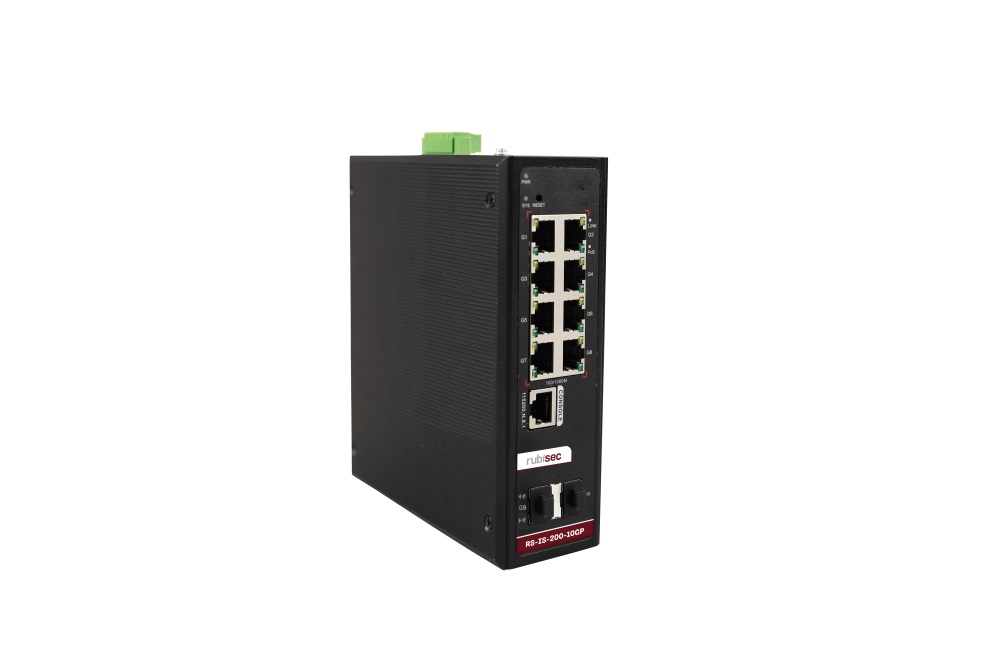

Ürün Kodu: RS-IS-200-20GP
| ÜRÜN ADI | Anahtarlama Cihazı (Switch) |
| ORJİNAL ÜRÜN KODU (P/N)* | RS-IS-200-20GP |
| ÜRÜNÜN MARKASI* | rubisec |
| ÜRÜNÜN MODELİ* | RS-IS-200-20GP |
| Anahtarlama Cihazı (Switch) | |
| Bağlantı Noktası Sayısı: | 20 |
| Sabit Bağlantı Noktaları Açıklaması: | 4 adet 100/1000Base-X SFP fiber port yuvası 16 adet 10/100/1000Base-T PoE destekli bakır port |
| Anahtar Bant Genişliği: | 40 Gbps |
| Yığınlama: | Yığınlama desteği yoktur |
| Yönetim Yazılımı: | WEB GUI, CLI Konsol, SNMP, SSH, SSL |
| Paket İletim Hızı (Mpps): | 29,78 Mpps |
| Güvenlik 1: | IP-MAC-VLAN-Port binding, ARP intrusion detection function, ARP message rate limiting function, Port-based IEEE802.1X certification, Port broadcast message suppression, SSL ensures data transmission security, Port isolation, IP source address protection, Host data backup mechanism, Anti-DoS attack, Limit on the number of MAC addresses learned, AAA&RADIUS certification, MAC address black hole, User hierarchical management and password protection, SSH 2.0 provides a secure encrypted channel for user login |
| Güvenlik 2: | Web network management (https), View CPU real-time utilization status, Link Layer Discovery Protocol (LLDP), NTP clock, SNMP V1/V2/V3, System work log, One click recovery, Ping detection, Cable status check, Rubisec NMS platform cluster management (LLDP+SNMP), Console/ AUX Modem/ Telnet/ SSH2.0 and CLI configuration, FTP, TFTP, Xmodem, SFTP file upload and download management |
| Fiziksel Özellikler: | Calısma sıcaklıgı -40°C / +80°C aralıgına sahip IP30 19-inch Rack Montaj, 8K MAC, 380 watt PoE bütçesi, Adresi, 442.5*315*44mm, <5.5 kg |
| Diğer Özellikler 1: | PoE working status, Delay start of power supply, PoE output priority configuration, Scheduling of PoE operation and time, Total power limit of PoE power supply, PoE output power allocation, on/off & af/at, IEEE802.3x flow control (Full duplex), Broadcast storm suppression based on port rate, Port real-time traffic management (Flow Interval), Limit the rate of packet traffic on incoming and outgoing ports, with min. granularity is 16Kbps and max is 1Gbps |
| Diğer Özellikler 2: | IPV4 static route/default route, max entries 128, L2+ network management function, ARP protocol, max 1024 entries, Port-based VLAN (4K), VLAN based on the protocol, IEEE802.1q, Port configuration of Access, Trunk, Hybrid, LACP dynamic aggregation, static aggregation, 8 ports per group, 10 grup per device |
| Diğer Özellikler 3: | STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s), MLD Snooping v1/v2, Multicast VLAN, User quick exit mechanism, IGMP Snooping v1/v2, Max 1024 multicast groups, Bidirectional data mirroring based on port, Queue scheduling algorithm (SP, WRR, SP+WRR), Flow-based rate limiting, Flow-based packet filtering, Flow-based based redirection, 8*Output queues of each port, |
| Diğer Özellikler 4: | 802.1p/ DSCP priority mapping, Diff-Serv QoS, Priority Mark/ Remark, Port-based and VLAN-delivered ACL, The L2-L4 packet filtering function can match the first 80 bytes of the packet and provide information based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, and VLAN. DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay |
| Diğer Özellikler 5: | 4KV 8/20us , IEC61000-6-2 (Common Industrial Standard) , IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge , IEC61000-4-3 (RS):10V/m (80~1000MHz) IEC61000-4-4(EFT): Power cable: ±4kV; data cable: ±2kV , IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV , IEC61000-4-6 (Radio frequency transmission): |
| Diğer Özellikler 6: | 10V(150kHz~80MHz) , IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s to 3s , IEC61000-4-9 (Pulsed magnet field): 1000A/m , IEC61000-4-10 (Damped oscillation): 30A/m 1MHz , IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV , IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s , IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock), IEC60068-2-32 (free fall) |
| Diğer Özellikler 7: | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
