Ürün Kodu: 01924-002

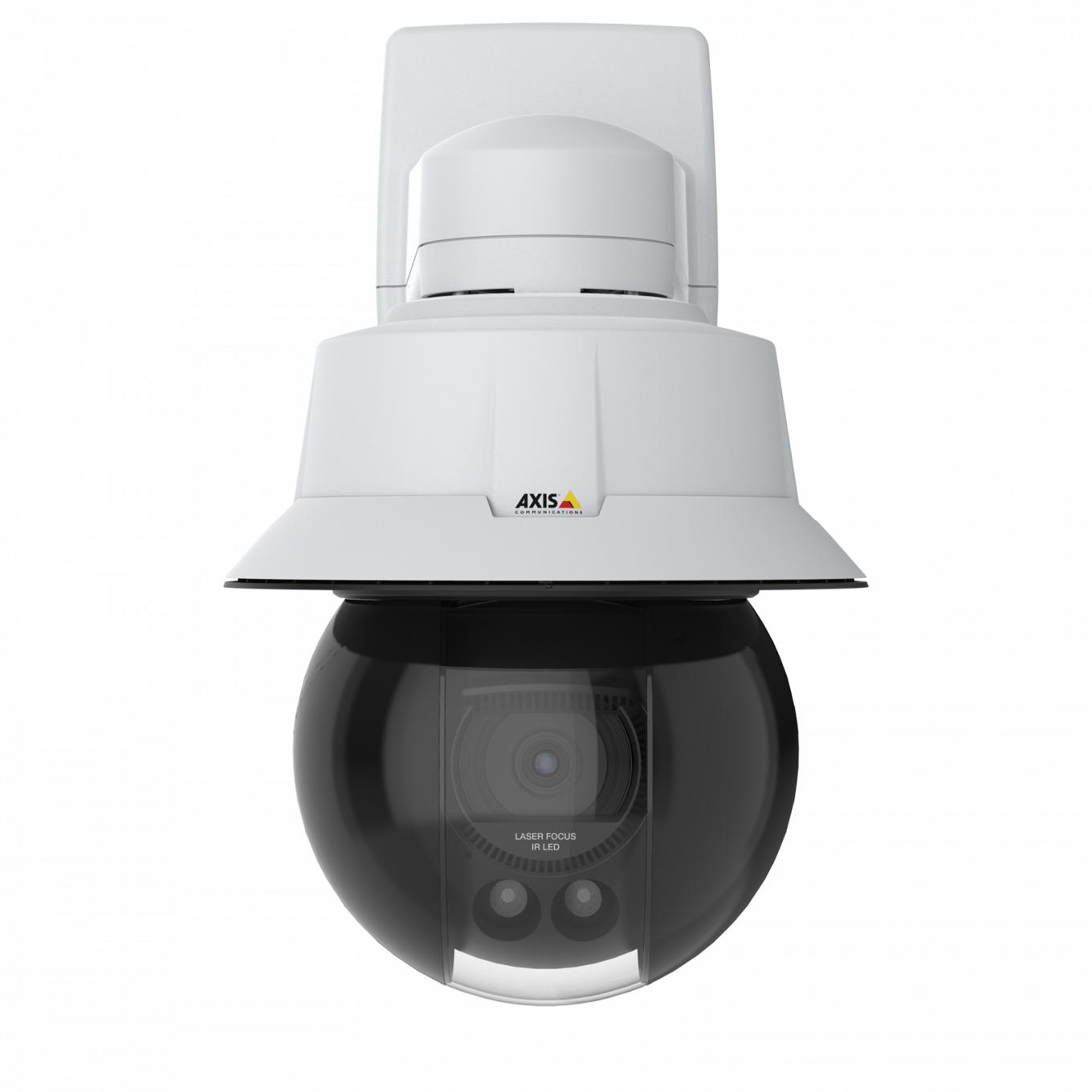

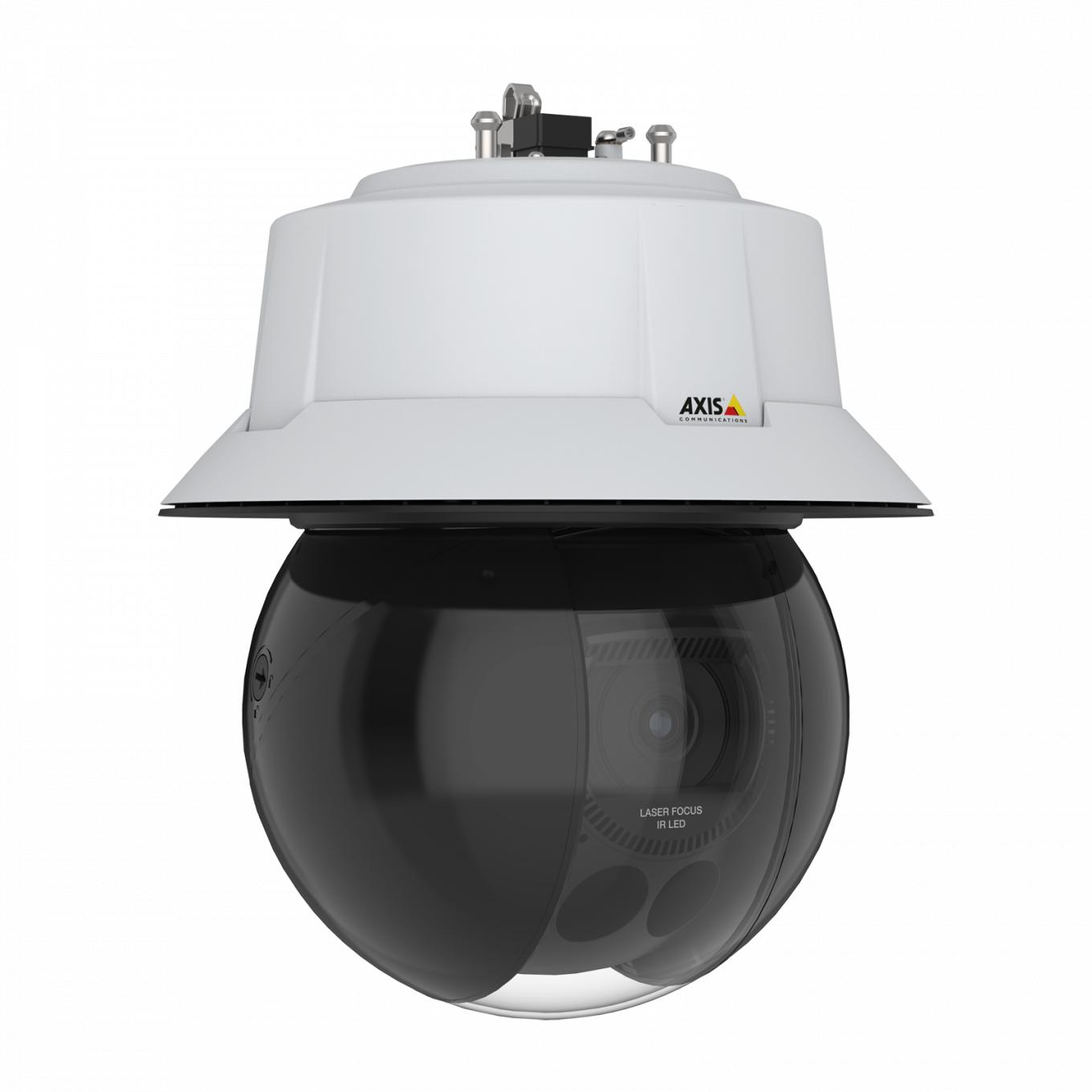

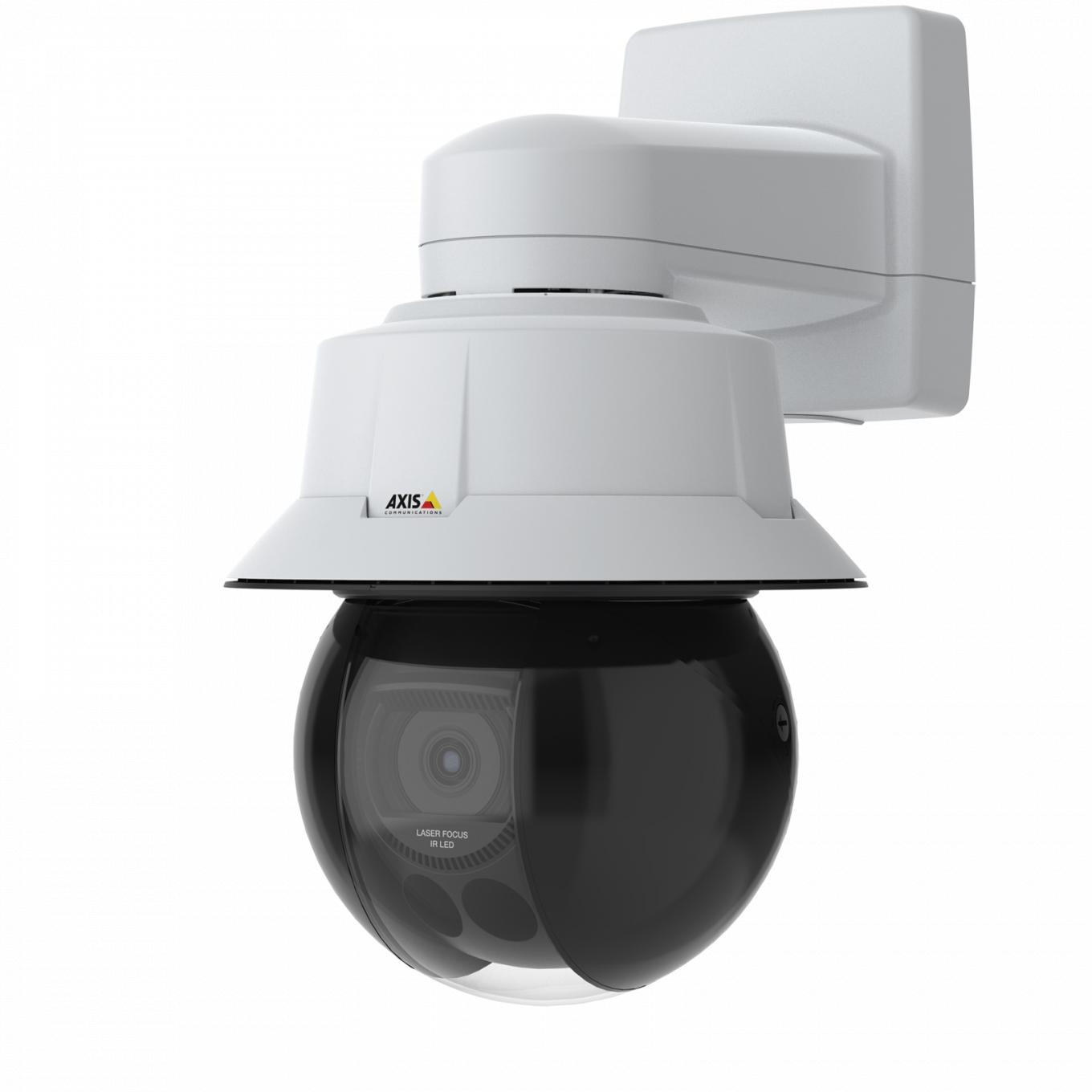

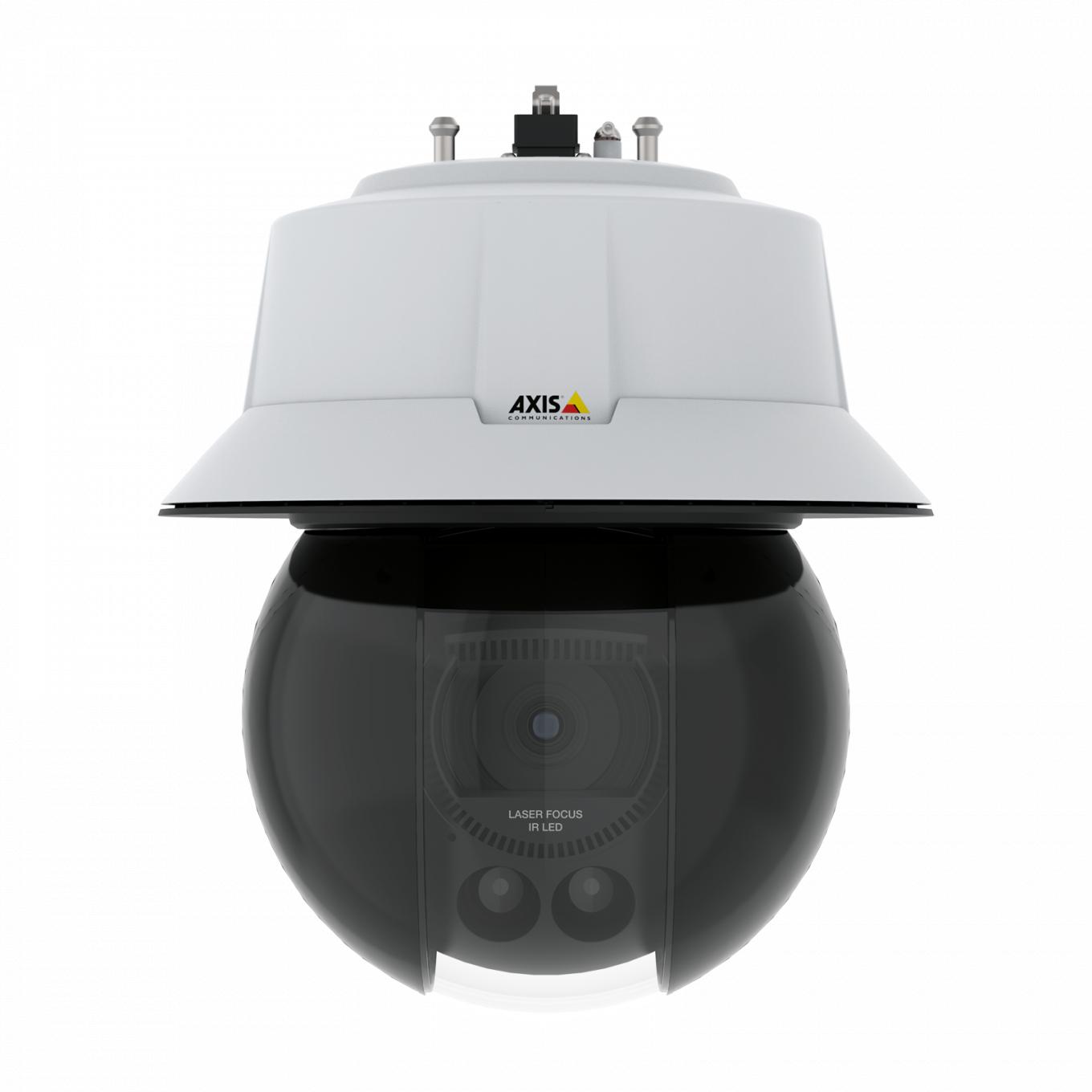

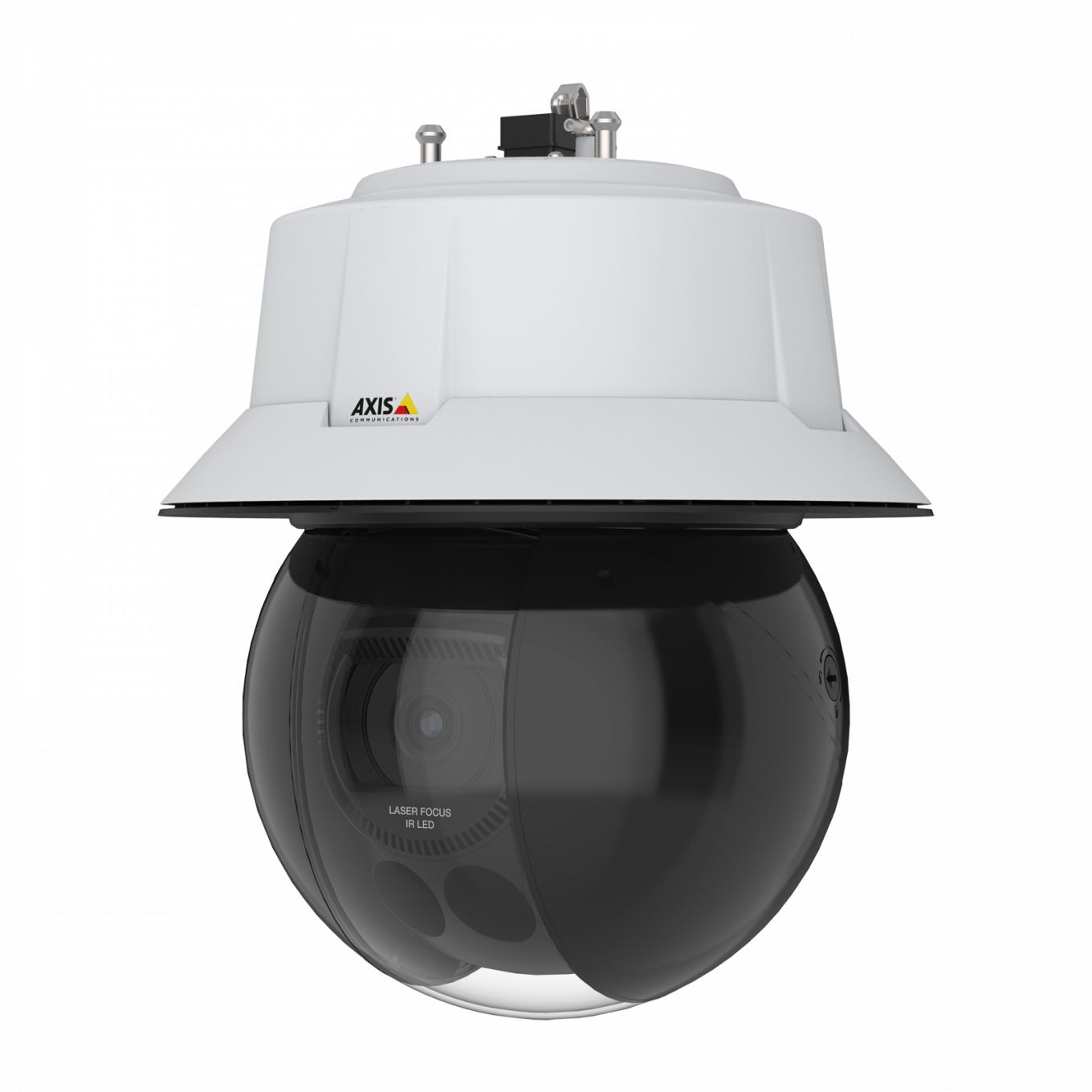

Ideal for city surveillance, AXIS Q6315-LE offers a ½” sensor and 31x optical zoom. It features laser focus for precise focus every time - even in the dark. And, Speed Dry functionality for crisp, clear images in rainy weather.
GÜVENLİK KAMERALARI | |
Tip: | DOME |
Ortam Tipi: | DIŞ ORTAM |
Sinyal Tipi: | NETWORK IP |
Montaj Tipi: | DUVAR |
Çözünürlük: | 1920x1080 (HDTV 1080p) |
Sensör Tipi: | 1/2” progressive scan CMOS |
Lens Tipi: | Varifocal |
Lens Boyutu (mm): | Focal length: 6.91 – 214.64 mm, F1.36 – F4.6 |
İnfrared Mesafesi (m): | OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 300 m (984 ft) or more depending on the scene |
Optik Zoom Oranı (X): | 31x |
Dijital Zoom Oranı (X): | 12x |
S/N Oranı (dB): | 0 |
Koruma Tipi: | NEMA 4X- and IK10-rated Color: white NCS S 1002-B |
Koruma Standartları: | IP66 / IP67 |
Besleme Tipi: | POE |
Güç Tüketimi (W): | 51W |
Protokoller: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
Sıkıştırma Tipi: | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles , H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
Ağ Arabirimi: | RJ45 10BASE-T/100BASE-TX/1000BASE-T, RJ45 Push-pull Connector (IP66) |
SD Kart: | Support for SD/SDHC/SDXC card |
Otomatik Kazanç Kontrolü: | EVET/VAR |
Otomatik Beyaz Dengesi: | EVET/VAR |
Arka Aydınlatma Kompanzasyonu: | EVET/VAR |
Arka Işık Maskeleme: | EVET/VAR |
Gündüz/Gece: | EVET/VAR |
Dijital Gürültü Azaltma: | EVET/VAR |
Akıllı İnfrared: | EVET/VAR |
Koyulaştırıcı: | EVET/VAR |
Yansıtma: | EVET/VAR |
Hareket Algılama: | EVET/VAR |
Yüz Algılama: | EVET/VAR |
On Screen Ekran Menüsü: | EVET/VAR |
Gizlilik Maskeleme: | EVET/VAR |
Gizlilik Bölgesi: | EVET/VAR |
Wide Dynamic Range: | EVET/VAR |
Analog Video Çıkışı: | HAYIR/YOK |
Alarm Giriş: | HAYIR/YOK |
Alarm Çıkış: | HAYIR/YOK |
Mikrofon Girişi: | HAYIR/YOK |
ONVIF: | ONVIF® Profile G, ONVIF® Profile S, and ONVIF® Profile T, |
Isıtıcı: | EVET/VAR |
Fan: | EVET/VAR |
Muhafaza: | HAYIR/YOK |
Ayak: | HAYIR/YOK |
Gelişmiş Fonksiyonlar: | AXIS Object Analytics Object classes: humans, vehicles Scenarios: line crossing, object in area, crossline counting, time in area Up to 10 scenarios Metadata visualized with trajectories, color-coded bounding boxes and tables Polygon include/exclude areas , Perspective configuration ONVIF Motion Alarm event, Metadata , Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates Confidence, position , Event data: Producer reference, scenarios, trigger conditions, Applications Included AXIS Object Analytics, AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, AXIS OSDI Zone, Orientation Aid PTZ, advanced gatekeeper, auto tracking 2 |
Diğer Özellikler1: | Cybersecurity Edge security , Software: Signed firmware, brute force delay protection, digest authentication, and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption , Hardware: Secure boot, Axis Edge Vault with secure Keystore (CC EAL4+, FIPS 140-2 level 2 certified hardware protection of cryptographic operations and keys) |
Diğer Özellikler2: | Network security IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2) an HTTPS/HSTSa, TLS v1.2/v1.3a, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
Diğer Özellikler3: | Documentation AXIS OS Hardening Guide , Axis Vulnerability Management Policy , Axis Security Development Model AXIS OS Software Bill of Material (SBOM) , To download documents, go to axis.com/support/cybersecurity/resources , To read more about Axis cybersecurity support, go to axis.com/cybersecurity |
