Ürün Kodu: AXIS 02504-001

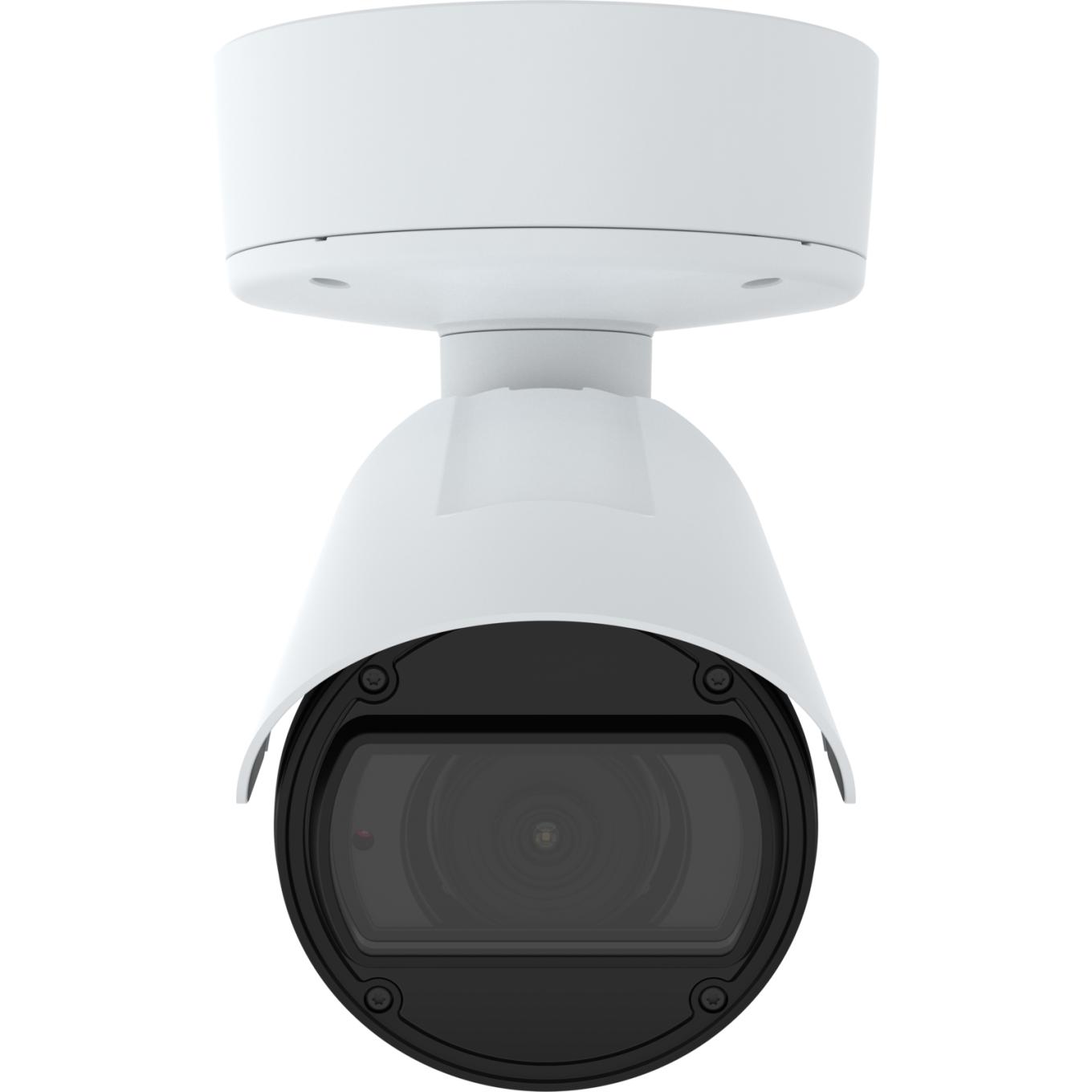

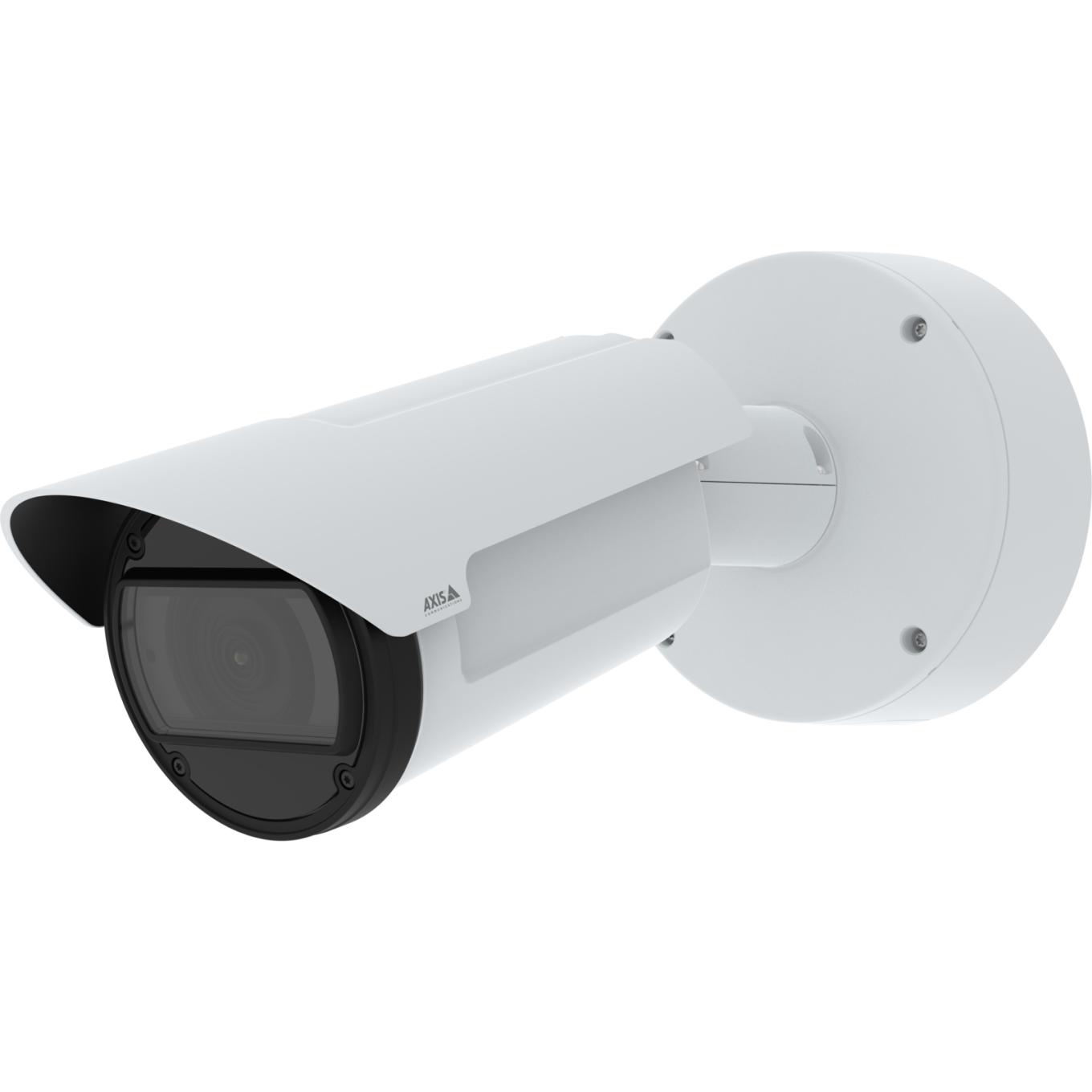

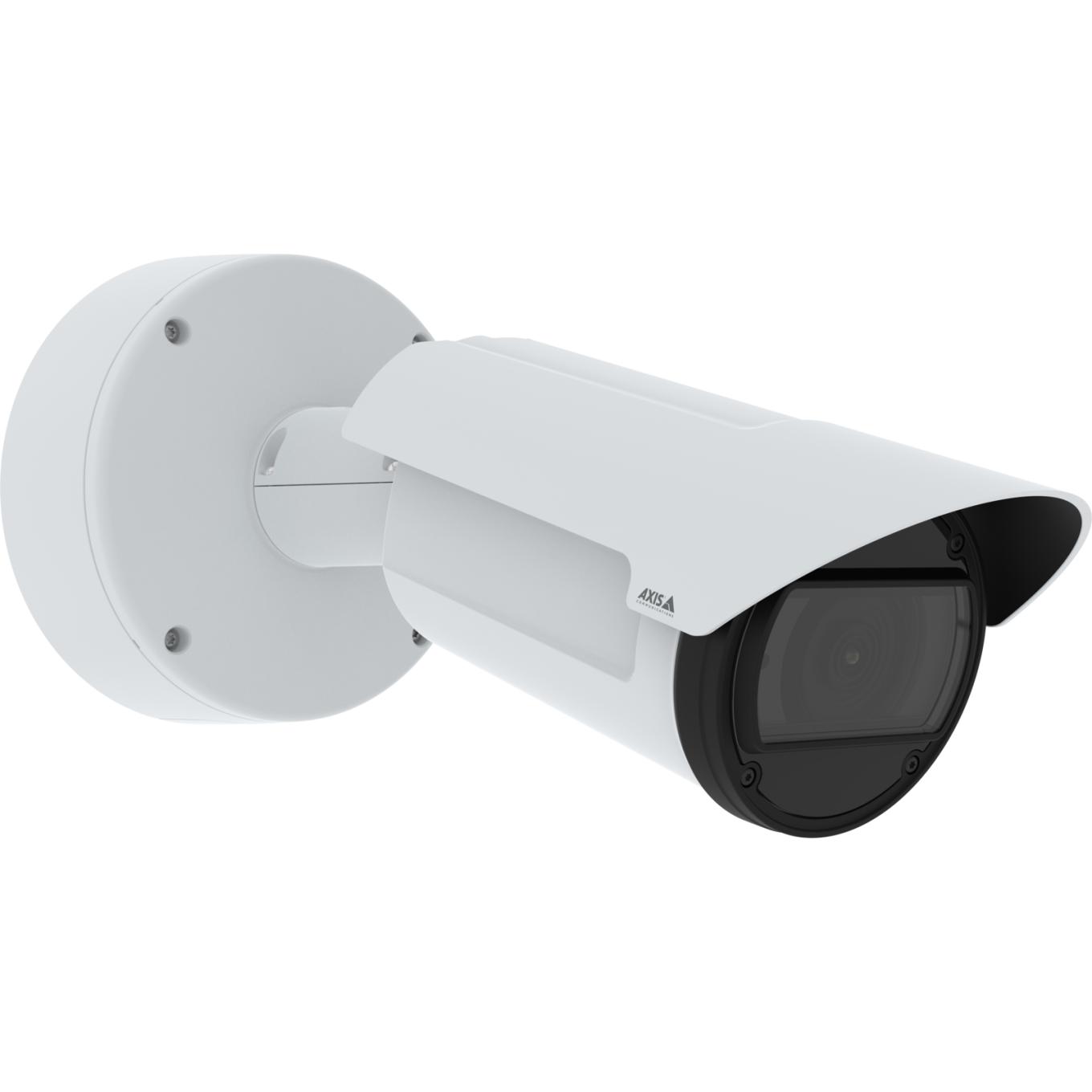

This high-performance bullet camera offers 2 MP image quality with 32x optical zoom for great details at any distance. Plus, a deep learning processing unit enables unique opportunities for analytics based on deep learning.
| GÜVENLİK KAMERALARI | |
| Tip: | BULLET |
| Ortam Tipi: | İÇ/DIŞ ORTAM |
| Sinyal Tipi: | NETWORK IP |
| Montaj Tipi: | DUVAR |
| Çözünürlük: | Resolution 4:3: 1400x1050 to 160x120 16:9 1920x1080 to 320x180 |
| Sensör Tipi: | 1/2.8” progressive scan RGB CMOS Pixel size 2.9 µm |
| Lens Tipi: | Varifocal |
| Lens Boyutu (mm): | 4.3-137 mm, F1.4-4.0 |
| İnfrared Mesafesi (m): | 100 |
| Optik Zoom Oranı (X): | 32x |
| Dijital Zoom Oranı (X): | var |
| S/N Oranı (dB): | >55db |
| Koruma Tipi: | IP66-, IP67-, and NEMA 4X-rated , IK10 impact-resistant aluminum enclosure with integrated , dehumidifying membrane, IK08 impact-resistant glass front , window, weathershield with black anti-glare coating , Color: white NCS S 1002-B, black NCS S 9000-N |
| Koruma Standartları: | IP66-, IP67 |
| Besleme Tipi: | IEEE 802.3at Type 2 Class 3/4/6 ve 10-28V DC ve 20-24V AC |
| Güç Tüketimi (W): | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3,typical 12.6 W, max 12.95 W (no IR, no heaters) , Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4, typical12.6 W, max 25.5 W , Power over Ethernet (PoE) IEEE 802.3bt Type 3 Class 6, typical12.6 W, max 51 W , 10–28 V DC, typical 11 W, max 29 W , 20–24 V AC, typical 11 VA, max 28 VA |
| Protokoller: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSc , HTTP/2, TLSc , , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), |
| Sıkıştırma Tipi: | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Ağ Arabirimi: | Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE, |
| SD Kart: | Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) |
| Otomatik Kazanç Kontrolü: | EVET/VAR |
| Otomatik Beyaz Dengesi: | EVET/VAR |
| Arka Aydınlatma Kompanzasyonu: | EVET/VAR |
| Arka Işık Maskeleme: | EVET/VAR |
| Gündüz/Gece: | EVET/VAR |
| Dijital Gürültü Azaltma: | EVET/VAR |
| Akıllı İnfrared: | EVET/VAR |
| Koyulaştırıcı: | EVET/VAR |
| Yansıtma: | EVET/VAR |
| Hareket Algılama: | EVET/VAR |
| Yüz Algılama: | EVET/VAR |
| On Screen Ekran Menüsü: | EVET/VAR |
| Gizlilik Maskeleme: | EVET/VAR |
| Gizlilik Bölgesi: | EVET/VAR |
| Wide Dynamic Range: | EVET/VAR |
| Analog Video Çıkışı: | HAYIR/YOK |
| Alarm Giriş: | EVET/VAR |
| Alarm Çıkış: | EVET/VAR |
| Mikrofon Girişi: | EVET/VAR |
| ONVIF: | EVET/VAR |
| Isıtıcı: | HAYIR/YOK |
| Fan: | HAYIR/YOK |
| Muhafaza: | HAYIR/YOK |
| Ayak: | EVET/VAR |
| Gelişmiş Fonksiyonlar: | Analytics AXIS Object Analytics , Object classes: humans, vehicles (types: cars, buses, trucks, bikes) , Features: line crossing, object in area, time in area, crossline counting BETA, occupancy in area BETA Up to 10 scenarios , Metadata visualized with trajectories, color-coded bounding boxes and tables Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event , Metadata Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates Confidence, position , Event data: Producer reference, scenarios, trigger conditions , Applications Included , AXIS Object Analytics, AXIS Video Motion Detection, active tampering alarm, audio detection, orientation aid , Supported , AXIS People Counter ,Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap |
| Diğer Özellikler1: | Cybersecurity Edge security Software: Signed firmware, brute force delay protection, digest authentication, password protection Hardware: Axis Edge Vault cybersecurity platform TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure element (CCEAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Diğer Özellikler2: | Network security IEEE 802.1X (EAP-TLS)c, IEEE 802.1AR, HTTPS/HSTSc, TLSv1.2/v1.3c, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
| Diğer Özellikler3: | Documentation AXIS OS Hardening Guide , Axis Vulnerability Management Policy , Axis Security Development Model , AXIS OS Software Bill of Material (SBOM) , To download documents, go to axis.com/support/cybersecurity/resources , To read more about Axis cybersecurity support, go to axis.com/cybersecurity |
