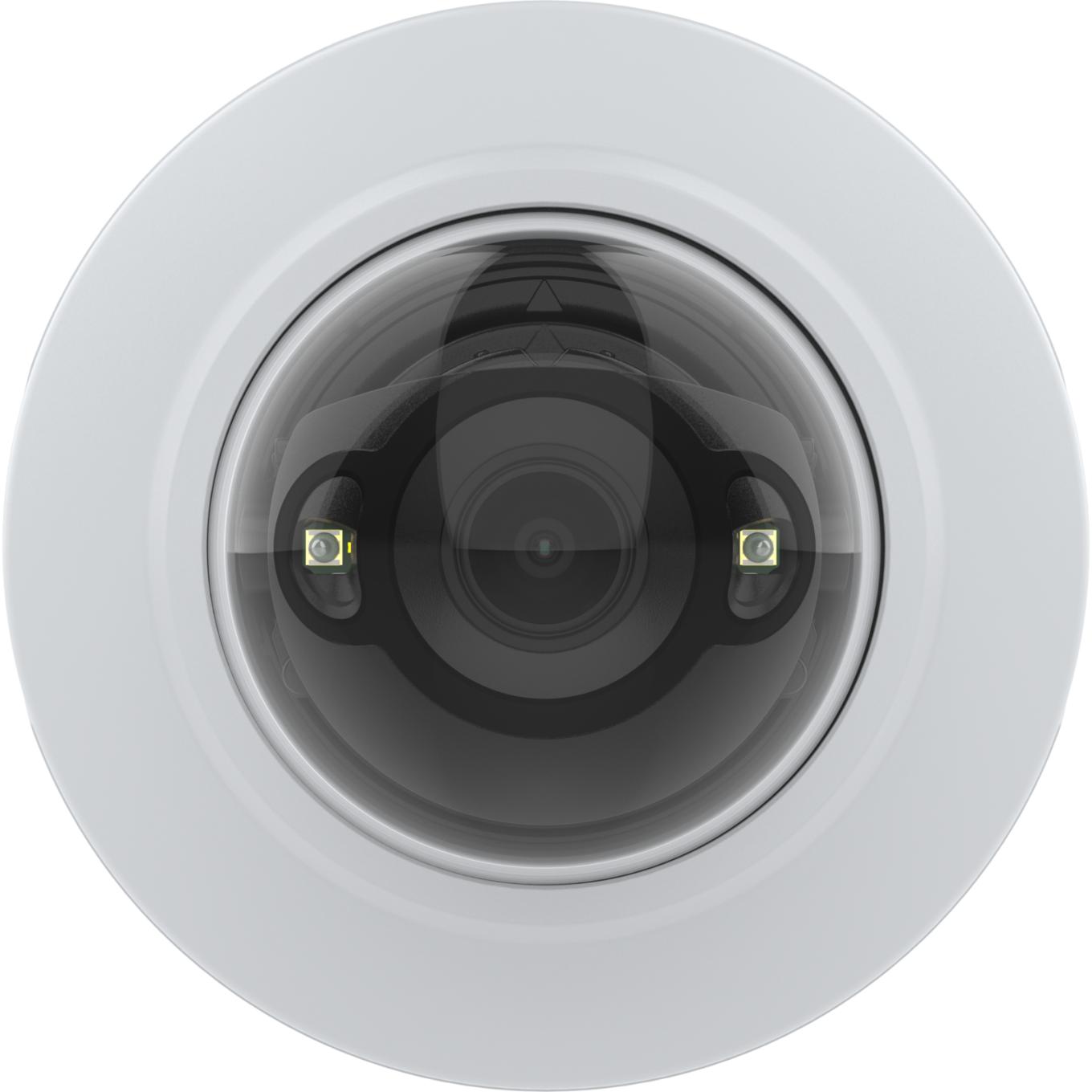

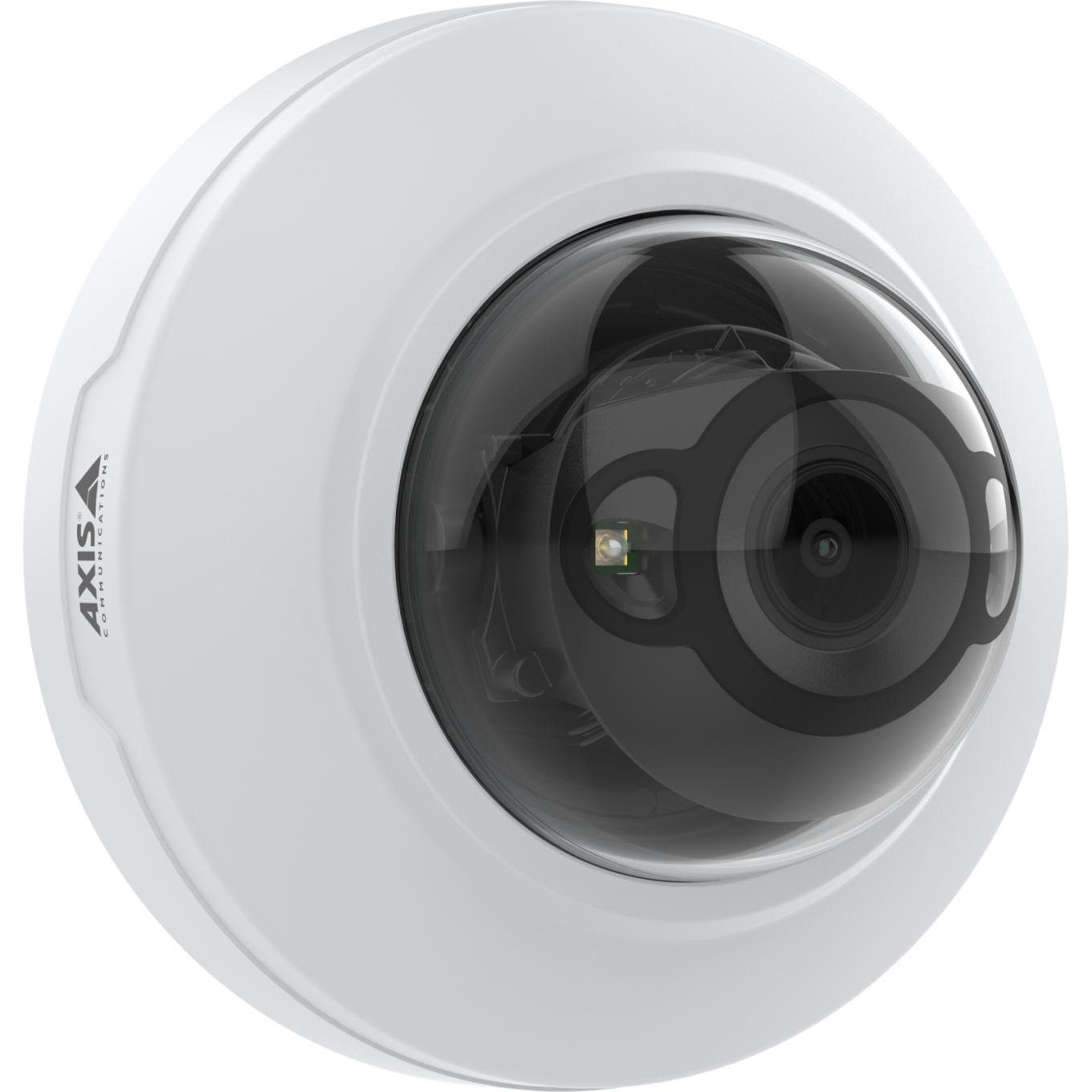

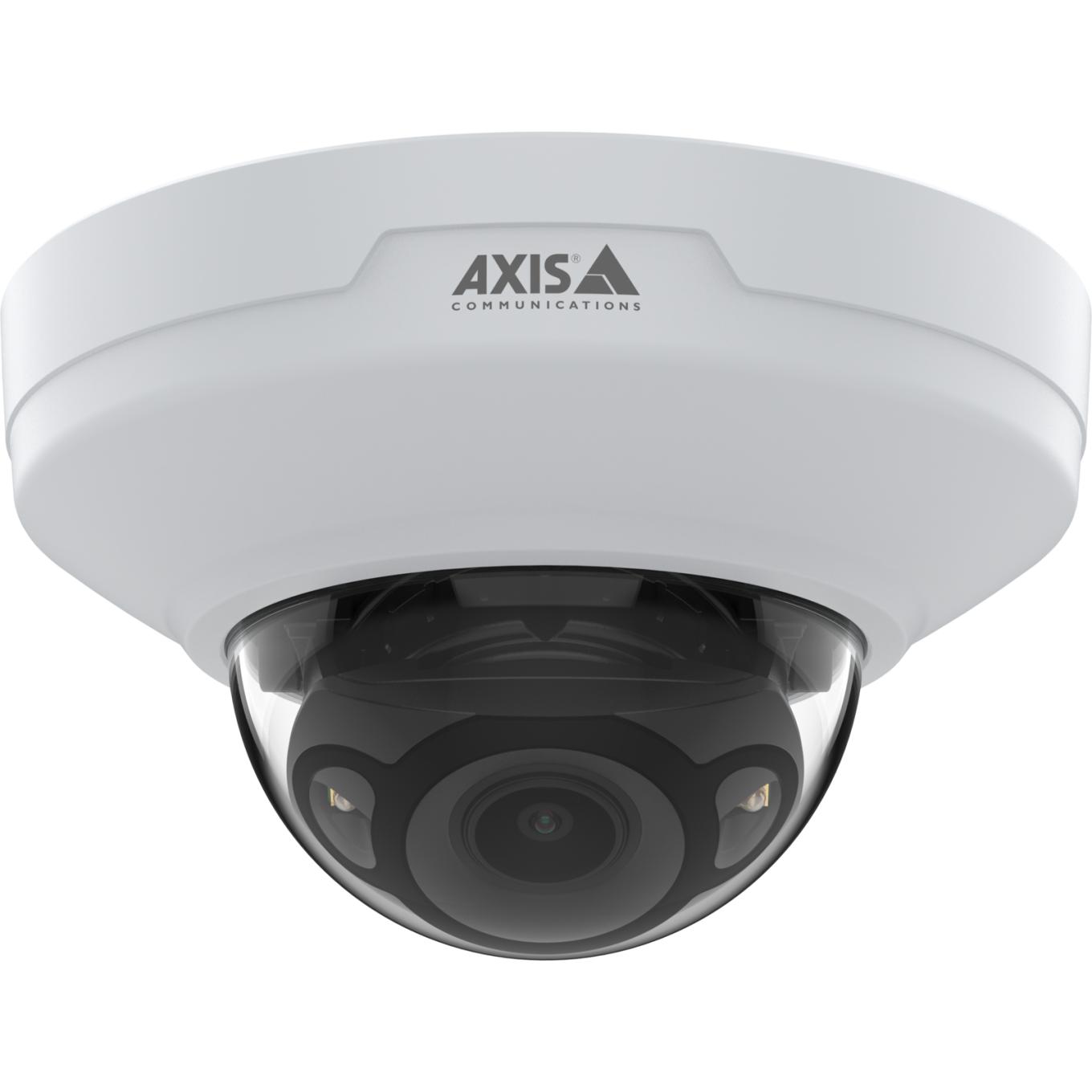

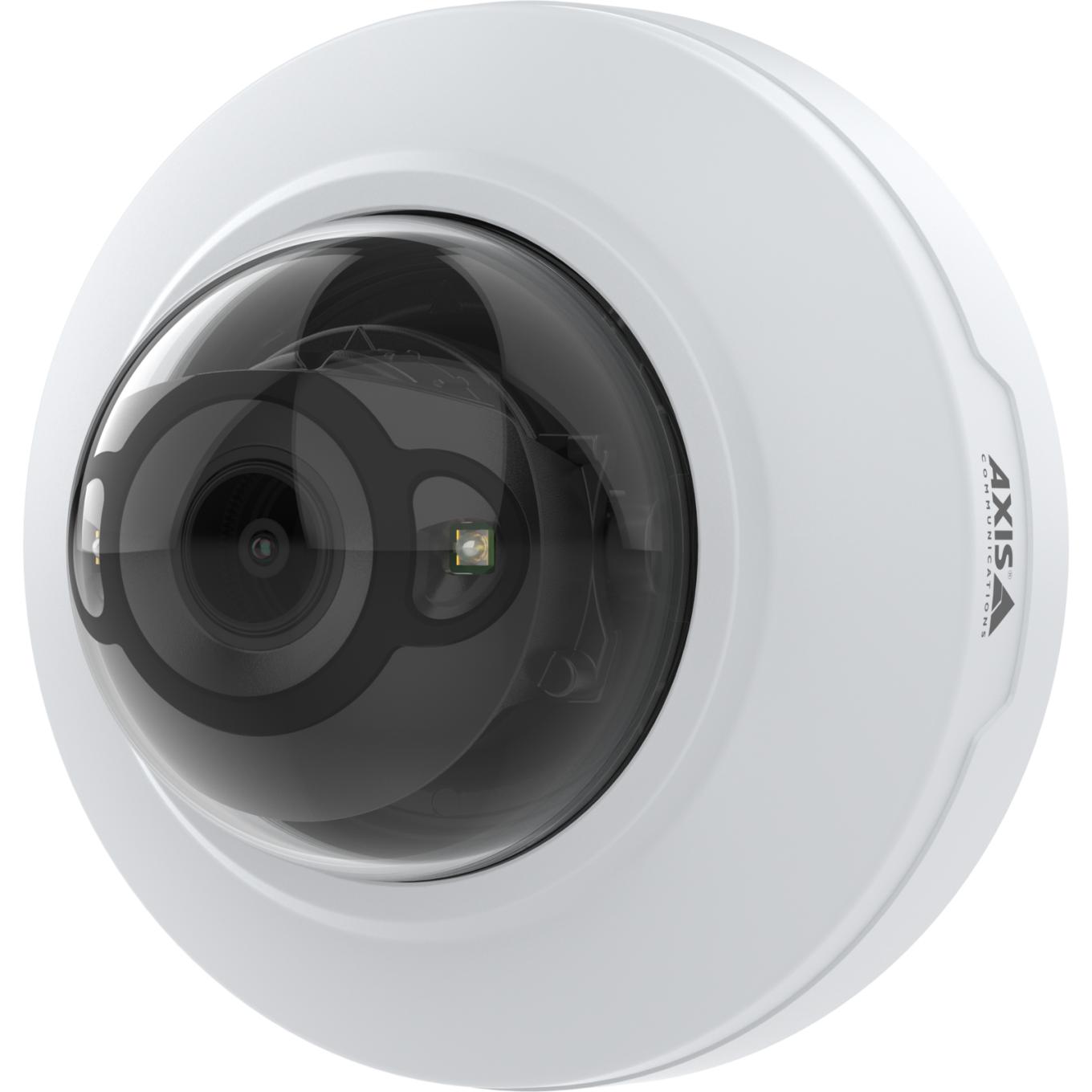

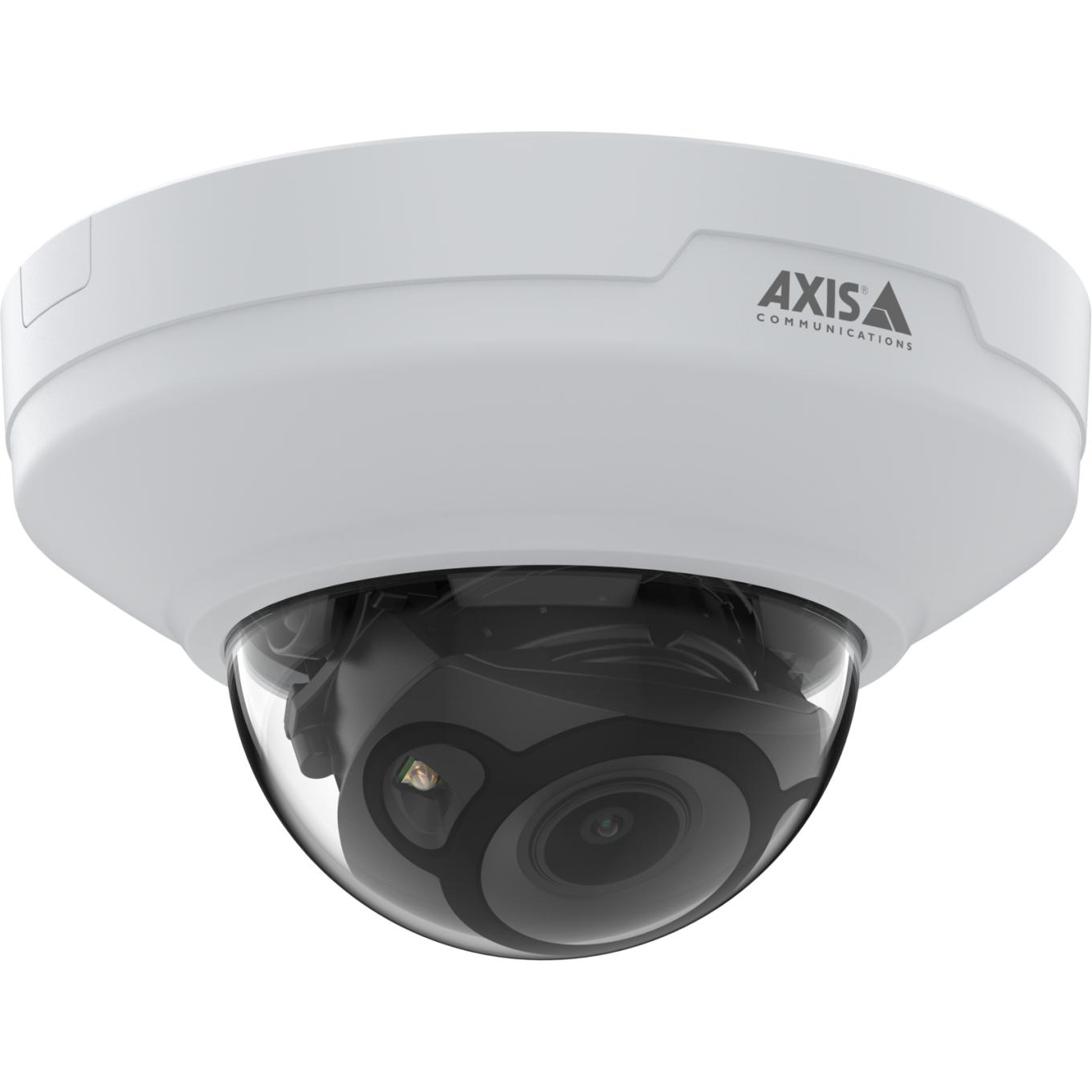

Ürün Kodu: AXIS M4216-LV
Varifocal 4 MP dome with IR and deep learning
| GÜVENLİK KAMERALARI | |
| Tip: | DOME |
| Ortam Tipi: | İÇ ORTAM |
| Sinyal Tipi: | NETWORK IP |
| Montaj Tipi: | TAVAN/DUVAR |
| Çözünürlük: | 2304x1728 |
| Sensör Tipi: | 1/2.7” progressive scan RGB CMOS |
| Lens Tipi: | Varifocal |
| Lens Boyutu (mm): | 3–6 mm, F1.9 - 2.7 |
| İnfrared Mesafesi (m): | OptimizedIR with power-efficient, long-life 850nm IR LEDs Range of reach 20m (65ft) or more depending on the scene |
| Optik Zoom Oranı (X): | 0 |
| Dijital Zoom Oranı (X): | Digital PTZ |
| S/N Oranı (dB): | 0 |
| Koruma Tipi: | IP42 water- and dust-resistant, IK08 impact-resistant, polycarbonate and aluminum casing with hard-coated dome Encapsulated electronics Color: white NCS S 1002-B |
| Koruma Standartları: | IP42 / IK08 |
| Besleme Tipi: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Güç Tüketimi (W): | Typical 5 W, max 9.7 W |
| Protokoller: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer, 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SSH, HDMI, LLDP, CDP, MQTT v3.1.1, Link-Localaddress (ZeroConf) |
| Sıkıştırma Tipi: | H.264 (MPEG-4 Part 10/AVC) Main and High Profiles, H.265 (MPEG-H Part 2/HEVC) Main and High Profiles Motion JPEG |
| Ağ Arabirimi: | RJ45 10BASE-T/100BASE-TX PoE , HDMI type D , Audio: Audio and I/O connectivity via portcast technology |
| SD Kart: | Support for microSD/microSDHC/microSDXC card , Support for SD card encryption , Support for recording to network-attached storage (NAS) |
| Otomatik Kazanç Kontrolü: | EVET/VAR |
| Otomatik Beyaz Dengesi: | EVET/VAR |
| Arka Aydınlatma Kompanzasyonu: | EVET/VAR |
| Arka Işık Maskeleme: | EVET/VAR |
| Gündüz/Gece: | EVET/VAR |
| Dijital Gürültü Azaltma: | EVET/VAR |
| Akıllı İnfrared: | EVET/VAR |
| Koyulaştırıcı: | EVET/VAR |
| Yansıtma: | EVET/VAR |
| Hareket Algılama: | EVET/VAR |
| Yüz Algılama: | HAYIR/YOK |
| On Screen Ekran Menüsü: | HAYIR/YOK |
| Gizlilik Maskeleme: | EVET/VAR |
| Gizlilik Bölgesi: | EVET/VAR |
| Wide Dynamic Range: | EVET/VAR |
| Analog Video Çıkışı: | HAYIR/YOK |
| Alarm Giriş: | HAYIR/YOK |
| Alarm Çıkış: | HAYIR/YOK |
| Mikrofon Girişi: | HAYIR/YOK |
| ONVIF: | ONVIF® Profile G, M, S and T |
| Isıtıcı: | HAYIR/YOK |
| Fan: | HAYIR/YOK |
| Muhafaza: | HAYIR/YOK |
| Ayak: | HAYIR/YOK |
| Gelişmiş Fonksiyonlar: | Deep learning processing unit (DLPU) , AXIS Object Analytics , Object classes: humans, vehicles(types: cars, buses, trucks, bikes) , Scenarios: line crossing, object in area, occupancy in area, time in area Up to10 scenarios Metadata visualized with color-coded bounding boxes Polygon include/exclude-areas Perspective configuration ONVIF Motion Alarm event Metadata , Object data: Classes: humans, faces, vehicles(types: cars, buses, trucks, bikes), license plates , Attributes: Vehicle color, upper/lower clothing color, confidence, position Eventdata: Producer reference, scenarios, trigger conditions Applications , Included: AXIS Object Analytics, AXIS Video Motion Detection, AXIS Face Detector, AXIS Live Privacy Shield, active tampering alarm Supported:AXIS People Counter AXIS Queue Monitor AXIS Camera Application Platform enabling installation of third-party applications ,seeaxis.com/acap |
| Diğer Özellikler1: | Cybersecurity Edge security Software: Signed firmware, brute force delay protection, digest authentication, and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform Secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Diğer Özellikler2: | Network security IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 , Certificate PKI, IP address filtering |
| Diğer Özellikler3: | Documentation AXIS OS Hardening Guide Axis Vulnerability Management Policy , Axis Security Development Model , AXIS OS Software Bill of Material (SBOM) , To download documents, go to axis.com/support/cybersecurity/resources , To read more about Axis cybersecurity support, go to axis.com/cybersecurity |
